Model shaping tool

The Model shaping tool is accessible from the Tools menu.

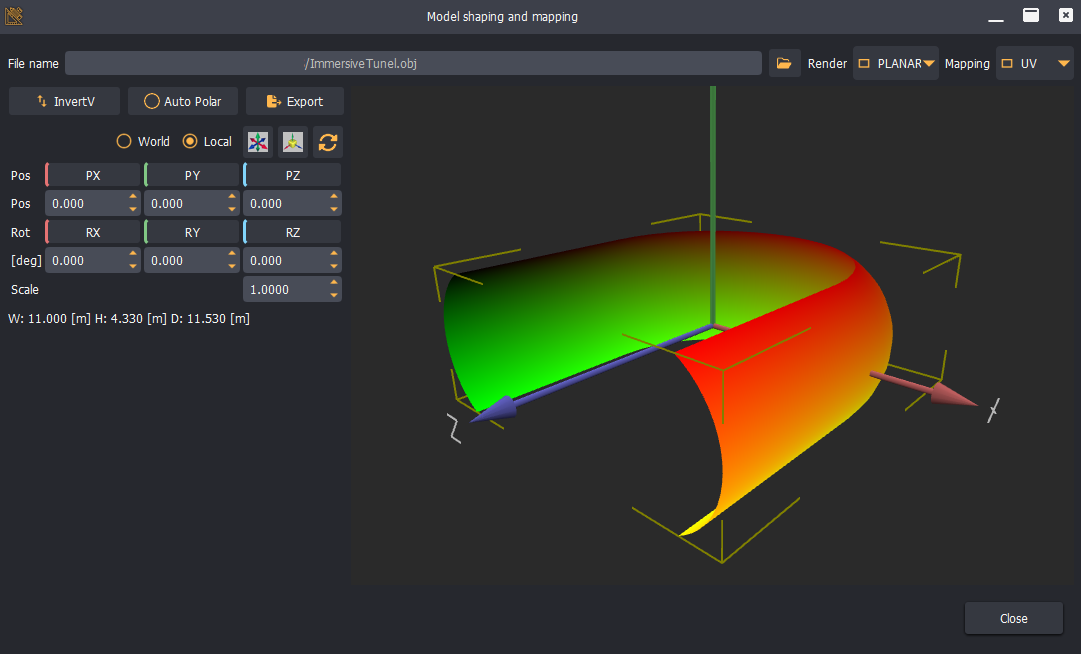

Model shaping tool

When 3D models and objects are exported from other 3D software, they might be exported in a coordinate system different from the Designer PRO coordinate system. The axes might not be aligned, and the vertex positions might not be in meters.

In addition, the V coordinate of the UV mapping might be inverted.

This tool can be used to reshape the 3D model. Available options are:

  • Scale: Change the size of the model.
  • Move/Align: Align the model coordinate system.
  • Invert V: Invert the V coordinate of the UV mapping.
  • Generate Polar UV: Generate polar UV coordinates.
  • Export: Export the model in .obj format.
