Horseshoe (single curved) screen shape

The horseshoe (single-curved) projection screen closely resembles the cylindrical (single-curved) projection screen. It features a cylindrical curvature of up to 180 degrees, with extended legs continuing beyond the curve.

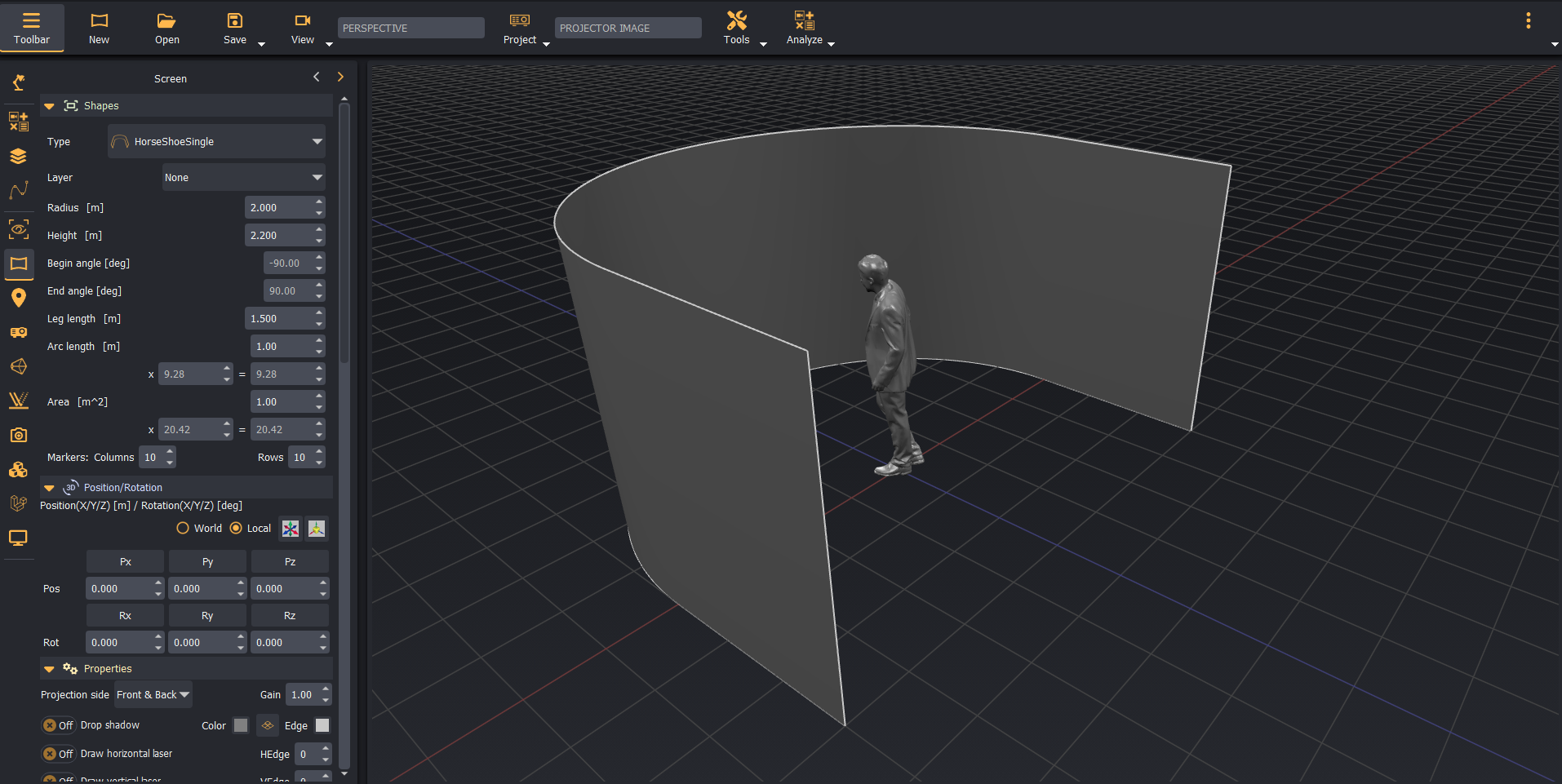

Users can customize the screen by specifying the cylinder's radius and height, the length of the extension legs, as well as the “begin” and “end” angles of the curvature. These angles are measured in degrees relative to the cylinder's center.

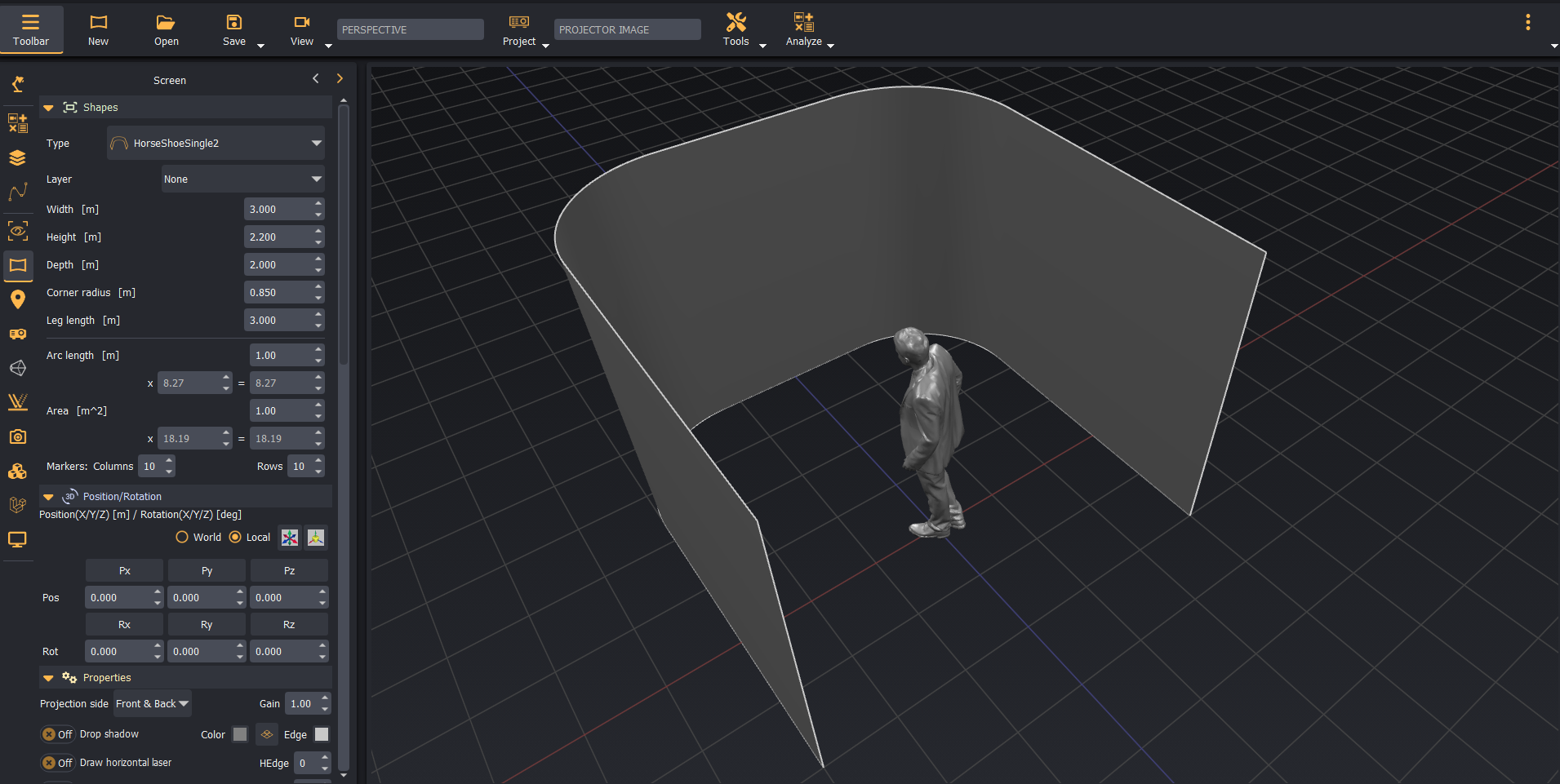

A special horseshoe (single-curved) projection screen shape can be defined by specifying the width, height, and depth of the horseshoe along with the corresponding curvature radius.
