Projectors

Projectors are the first-class citizens in Immersive Designer PRO.

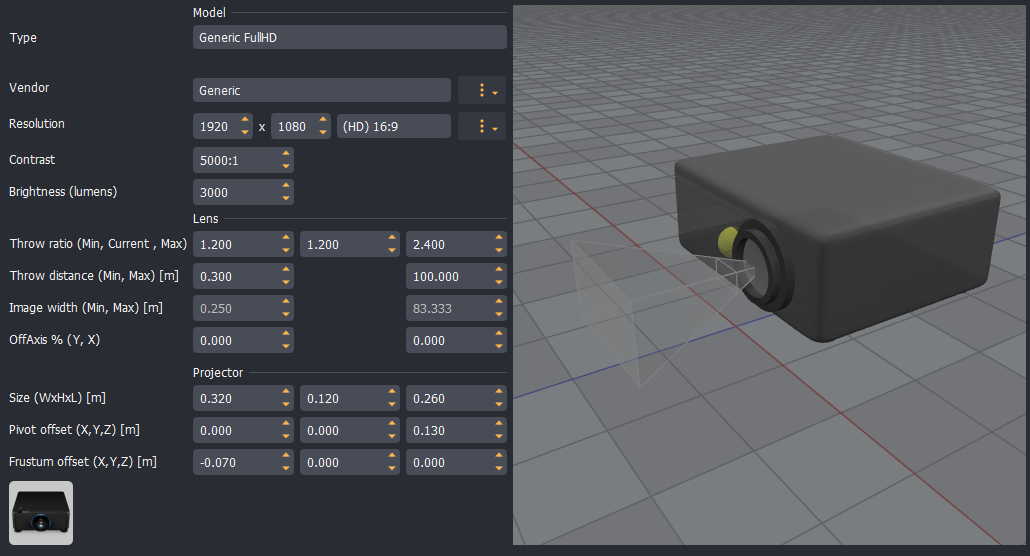

Each projector is defined by its parameters:

Extrinsic parameters

• Vendor and model
• Projector box dimensions
• 3D position
• 3D orientation
• Frustum offset

Intrinsic parameters

• Resolution
• Lens characteristics (throw ratio, H/V lens shift)
• Brightness
• Contrast
• Image orientation

Content sources

Each projector can be connected to one of the supported image content sources:

• Internal identity image
• Still image
• Video file
• Spout dynamic content
• NDI dynamic content

Configuration

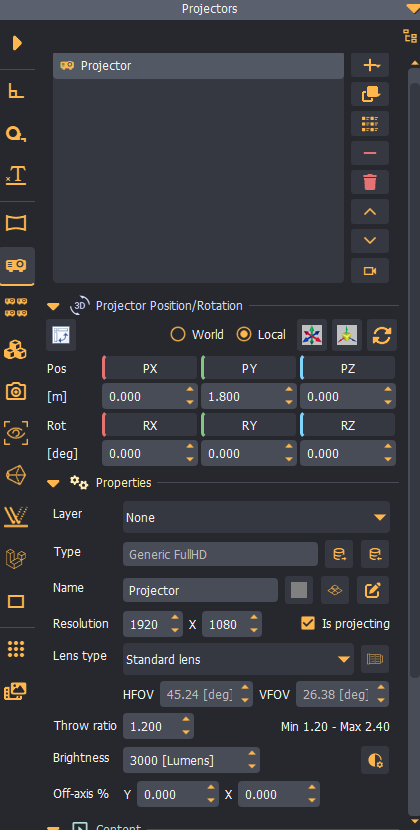

The projectors control panel is the main configuration panel for adding, removing, and configuring projectors in the 3D scene.
