Projection Angles Analyze module

The Projection Angles analyze module calculates the projector ray hit angle of each pixel on the projection screen. This angle is measured as the angle between the projection ray and the screen normal vector.

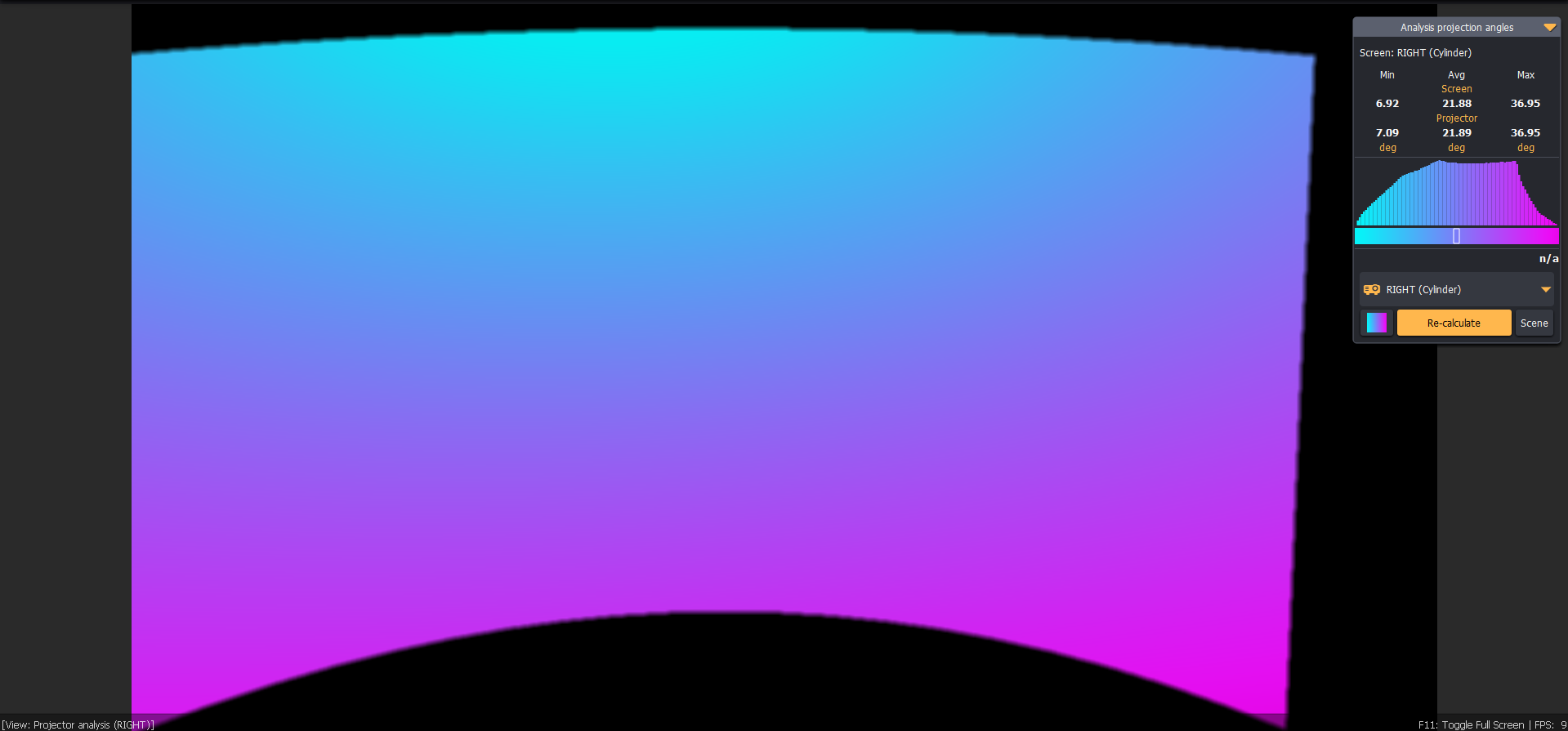

The angle values, represented in degrees, are encoded using a color gradient and displayed on the projection screen. This visualization allows users to assess the stretching of the projected image on the projection screen.
