Pixel Size Analyze module

The Pixel Size analyze module determines the dimensions of each pixel on the projection screen. Each pixel's size is calculated as the average of its projected width and height on the screen.

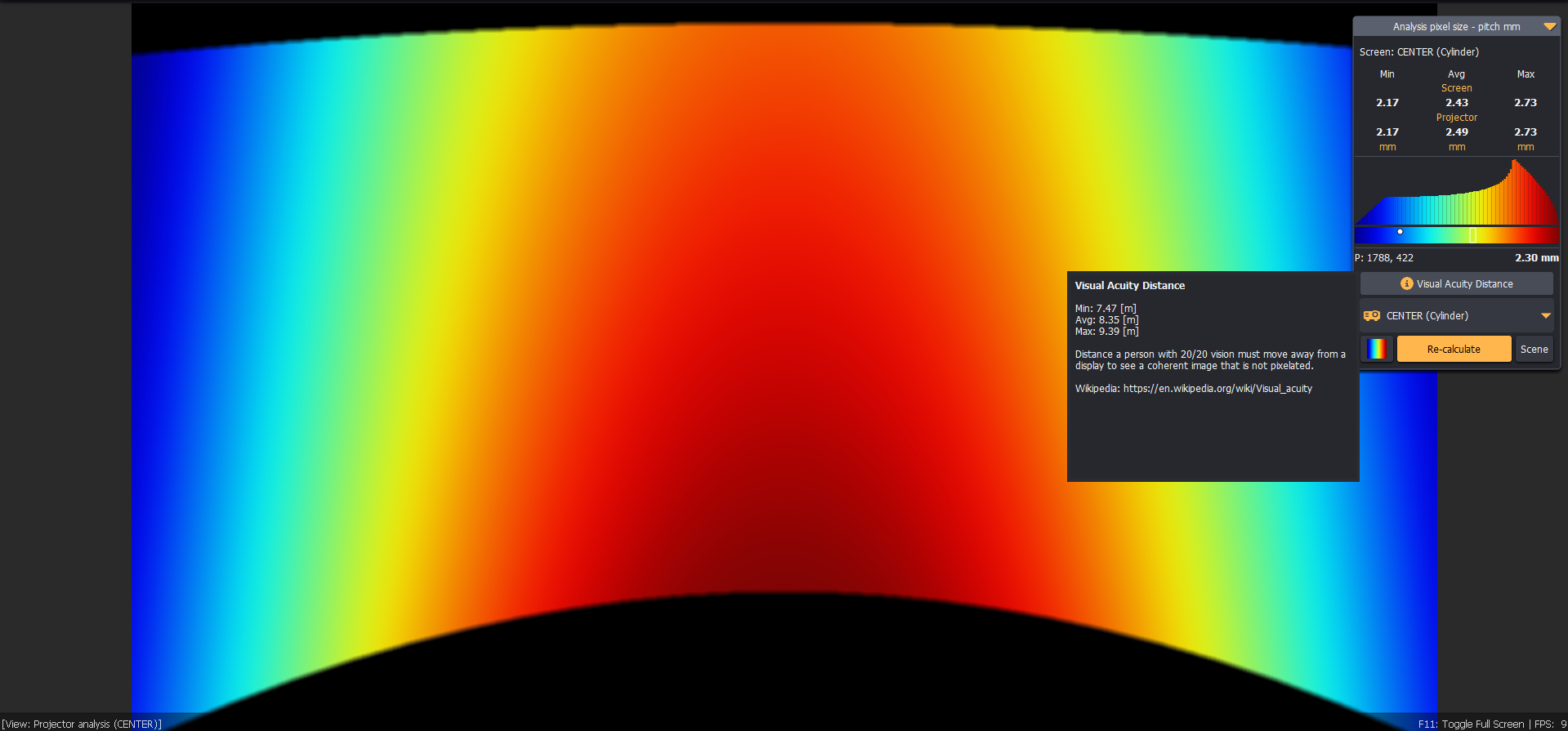

The module can be configured to calculate the pixel pitch (mm) or the pixel area (mm²).

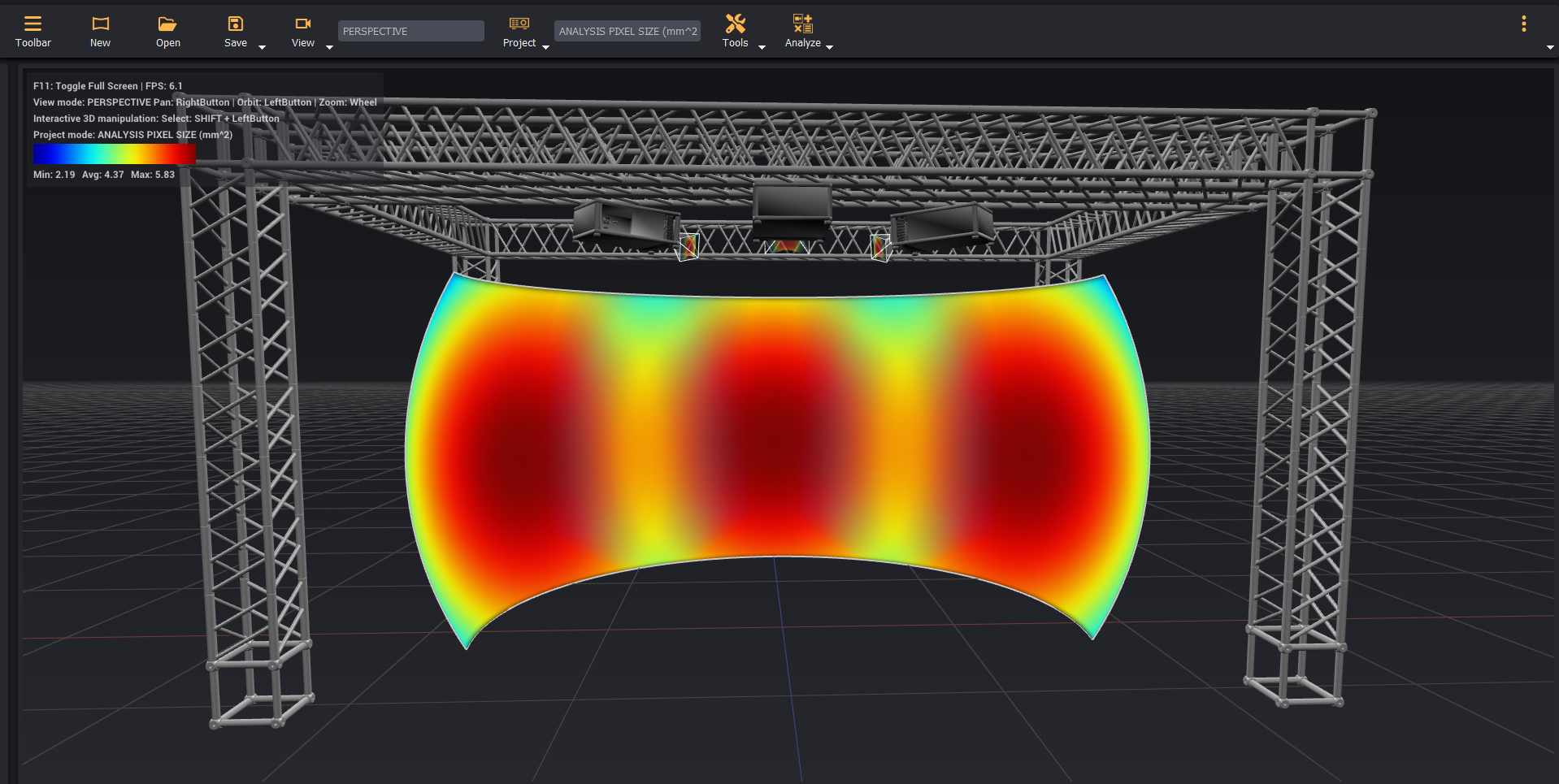

Pixel size is visualized on the projection screen using a color gradient.

This view enables users to assess the pixel distribution and dimensions based on each projector's resolution and position relative to the projection screen.
