Pixel Resolution Analyze module

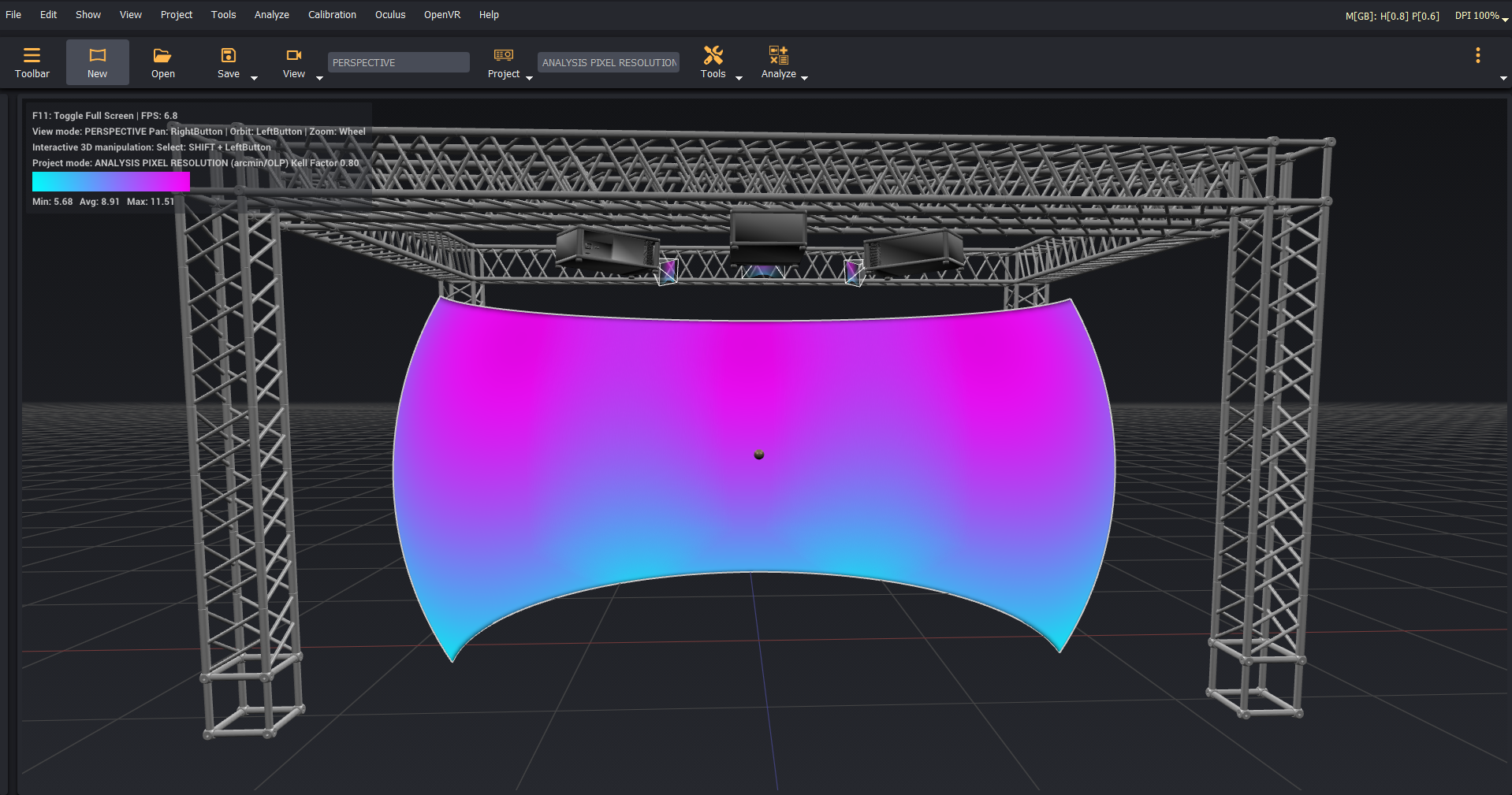

The Pixel Resolution analyze module determines the screen's pixel resolution based on a specified eye-point position. This resolution is calculated as the angular distance between two adjacent projector pixels, or between a vertical line pair, projected onto the screen.

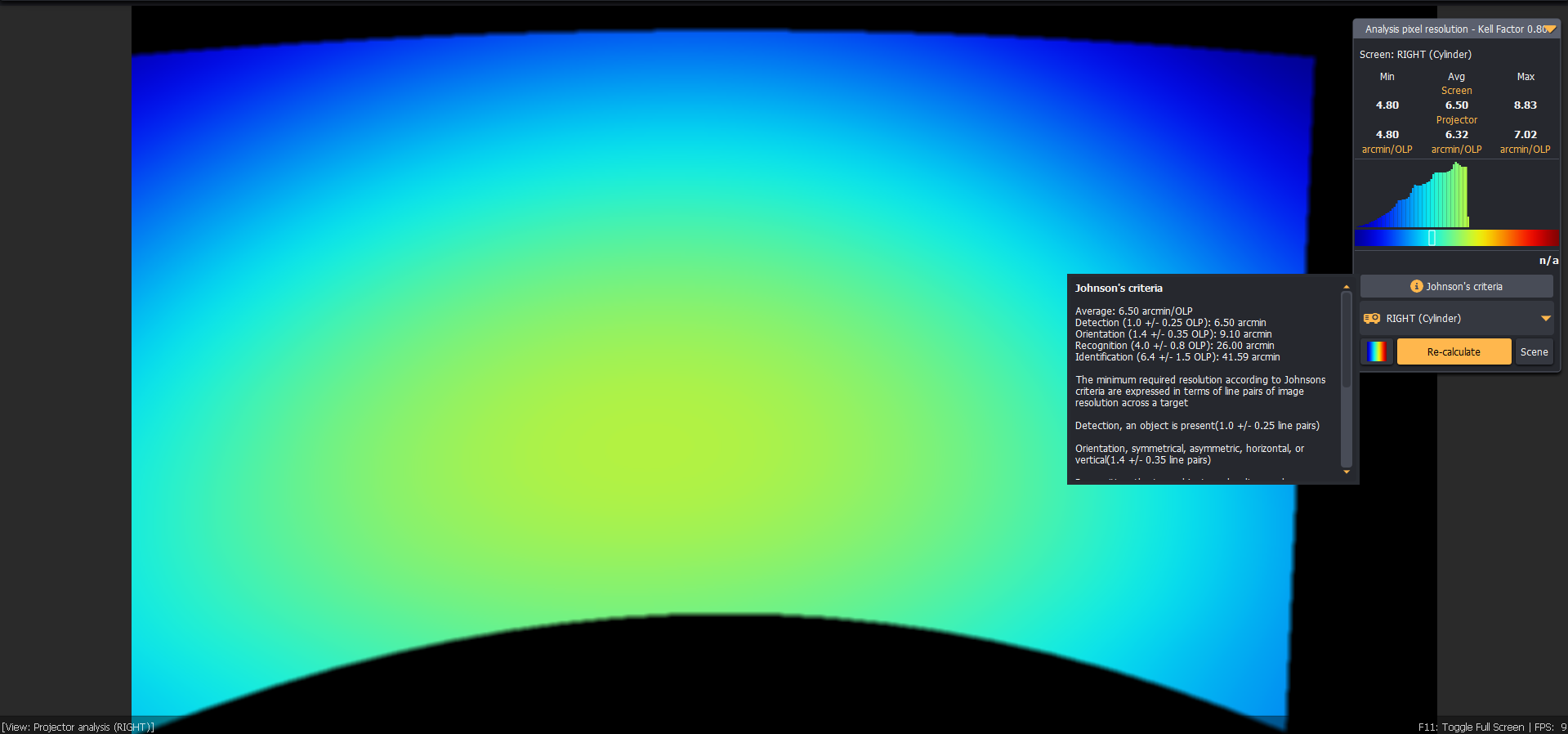

By hovering over the desired projector image, the user can see the analysis histogram and additional details about the analyzed values.

Additionally, the Information button shows the industry-standardized pixel resolution ranges and explanation.

Pixel resolution is expressed in either arcmin/OLP (arc minutes per optical line pair) or arcmin/pixel (arc minutes per pixel). An arcminute, or minute of arc, represents one-sixtieth (1/60) of a degree of angular measurement. The pixel resolution calculation also incorporates the configured Kell factor set in the analyze tab.
