Perspective Stretch Analyze module

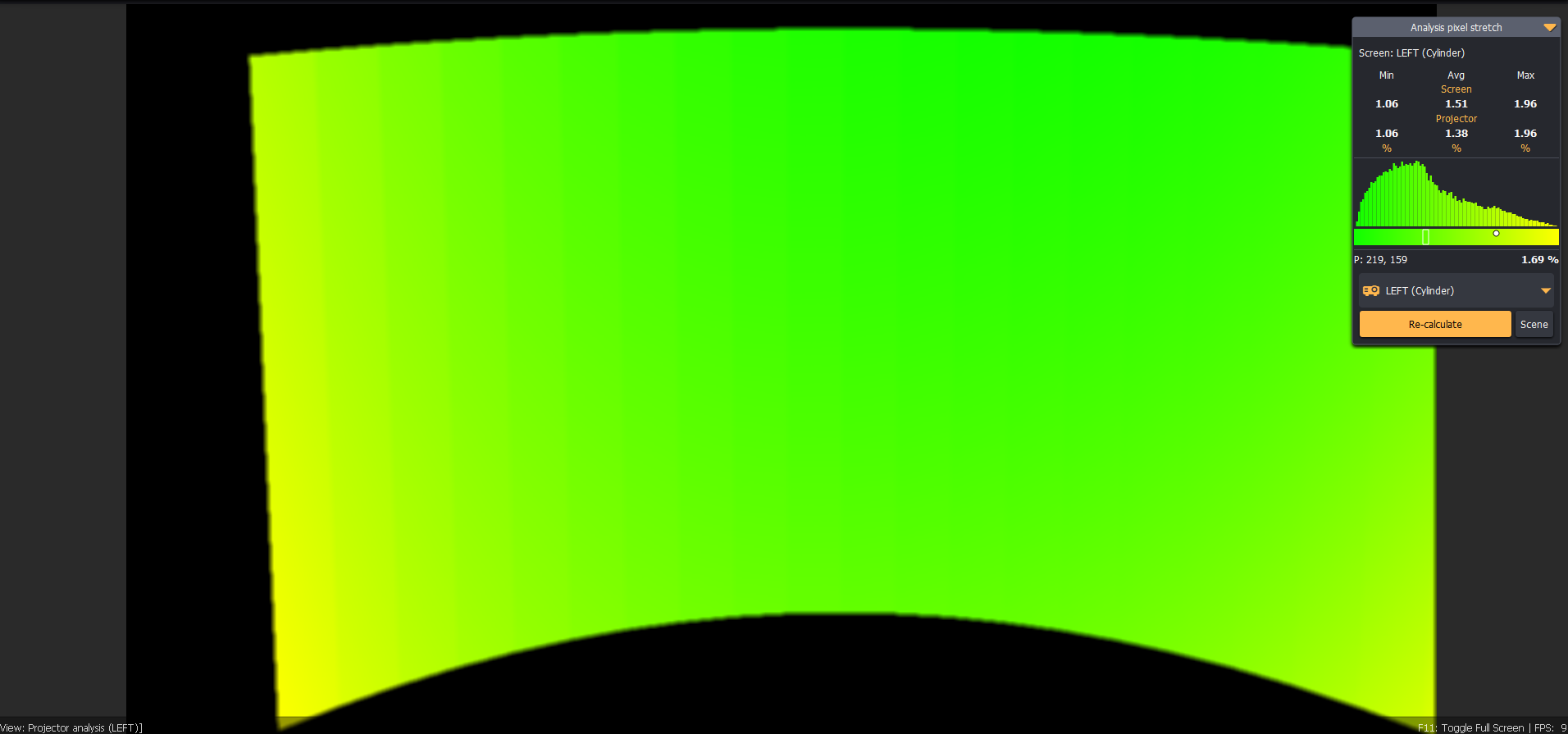

The Perspective Stretch analyze module calculates how much a projector pixel is deformed (stretched or squeezed) when perspective views are applied, as commonly seen in simulator setups using multi-view calibration files. Perspective views are generated from a specific eye-point.

To optimize projector pixel usage and minimize unused pixels (the red area), pay careful attention to the projection setup design, the screen, and the eye-point positioning.
