LED Resolution Analyze module

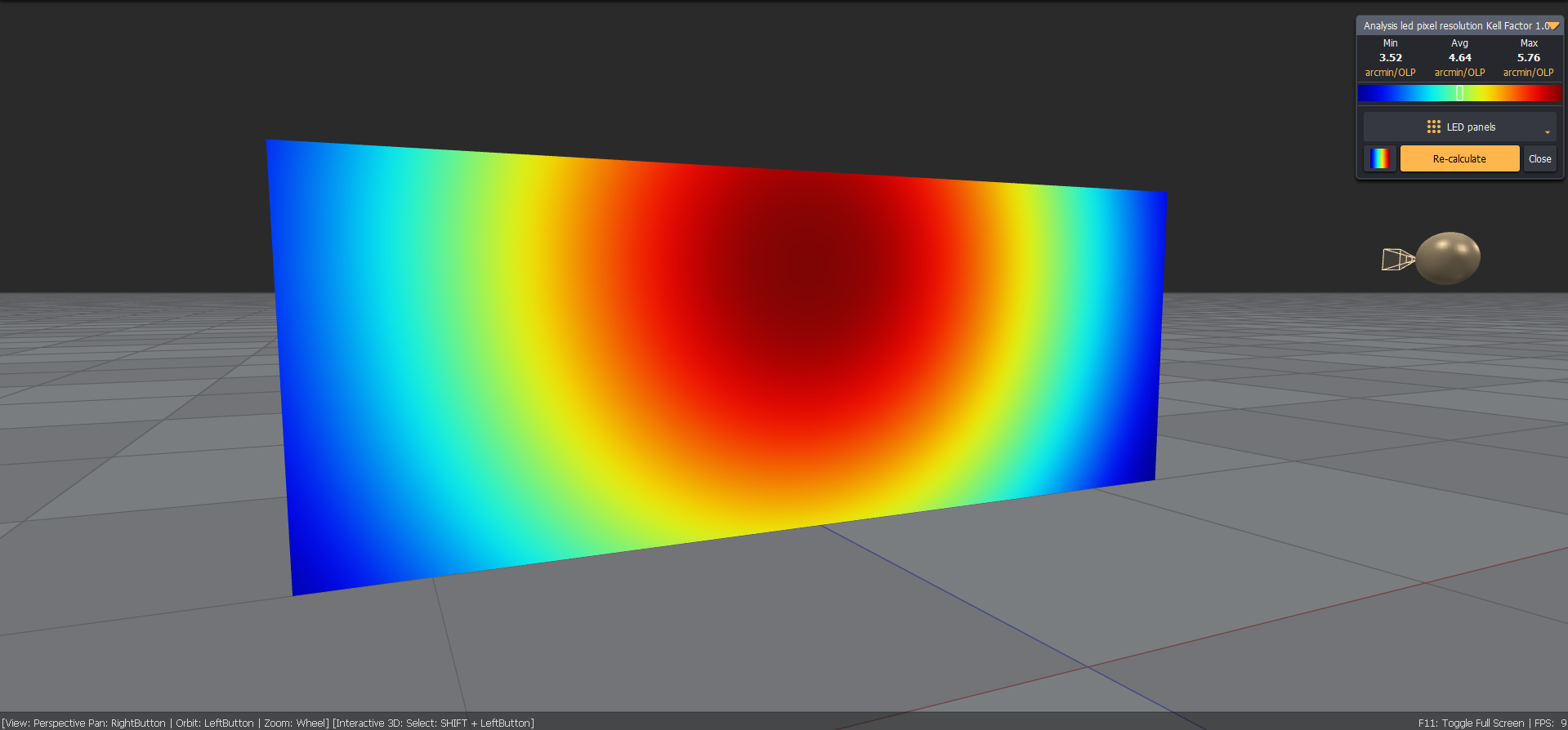

The LED Resolution analyze module determines the LED panel pixel resolution based on a specified eye-point position and the LED pixel pitch. This resolution is calculated as the angular distance between two adjacent LED pixels.

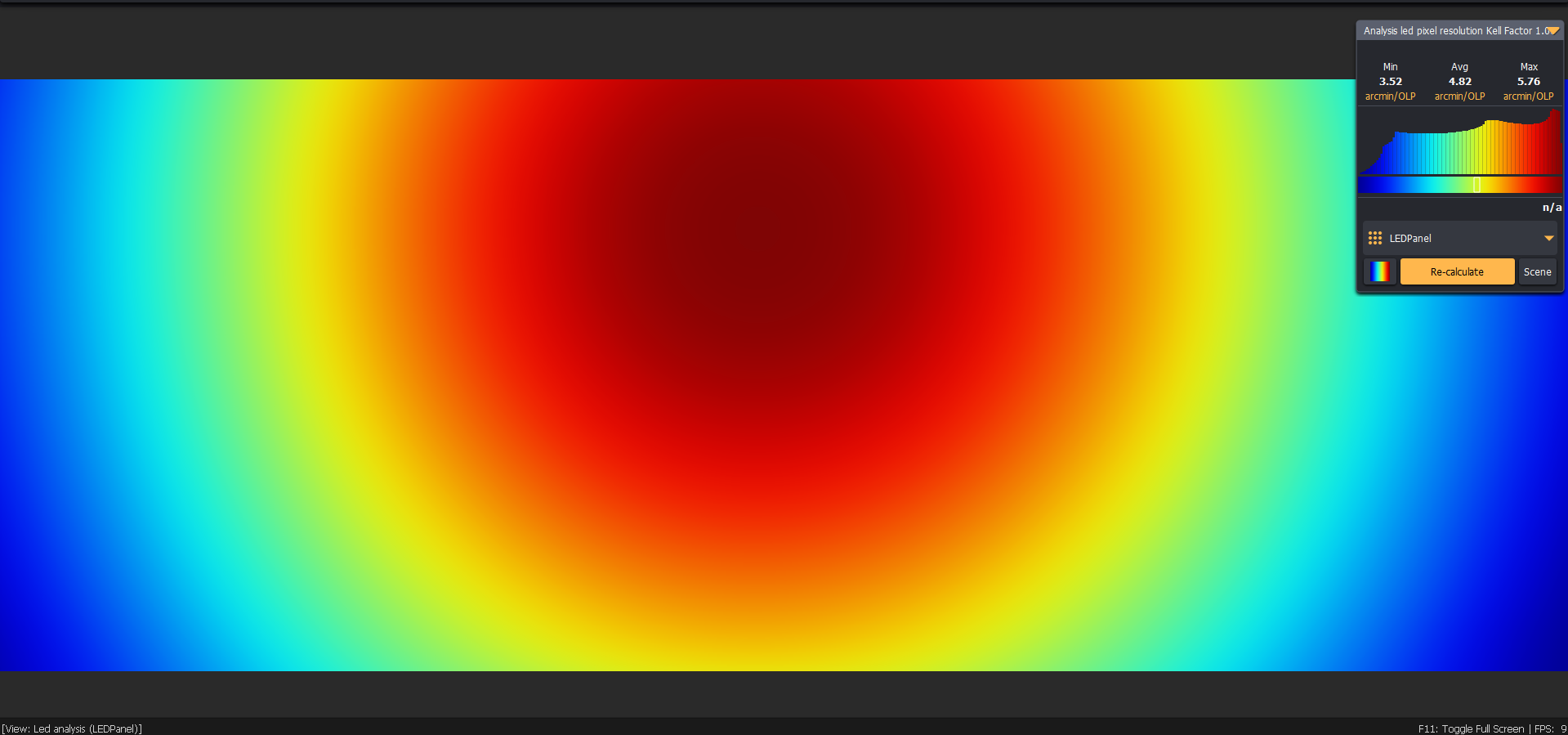

By hovering over the desired LED image, the user can see the analysis histogram and additional details about the analyzed values.

Pixel resolution is expressed in either arcmin/OLP (arc minutes per optical line pair) or arcmin/pixel (arc minutes per pixel). An arcminute, or minute of arc, represents one-sixtieth (1/60) of a degree of angular measurement.
