Brightness Analyze module

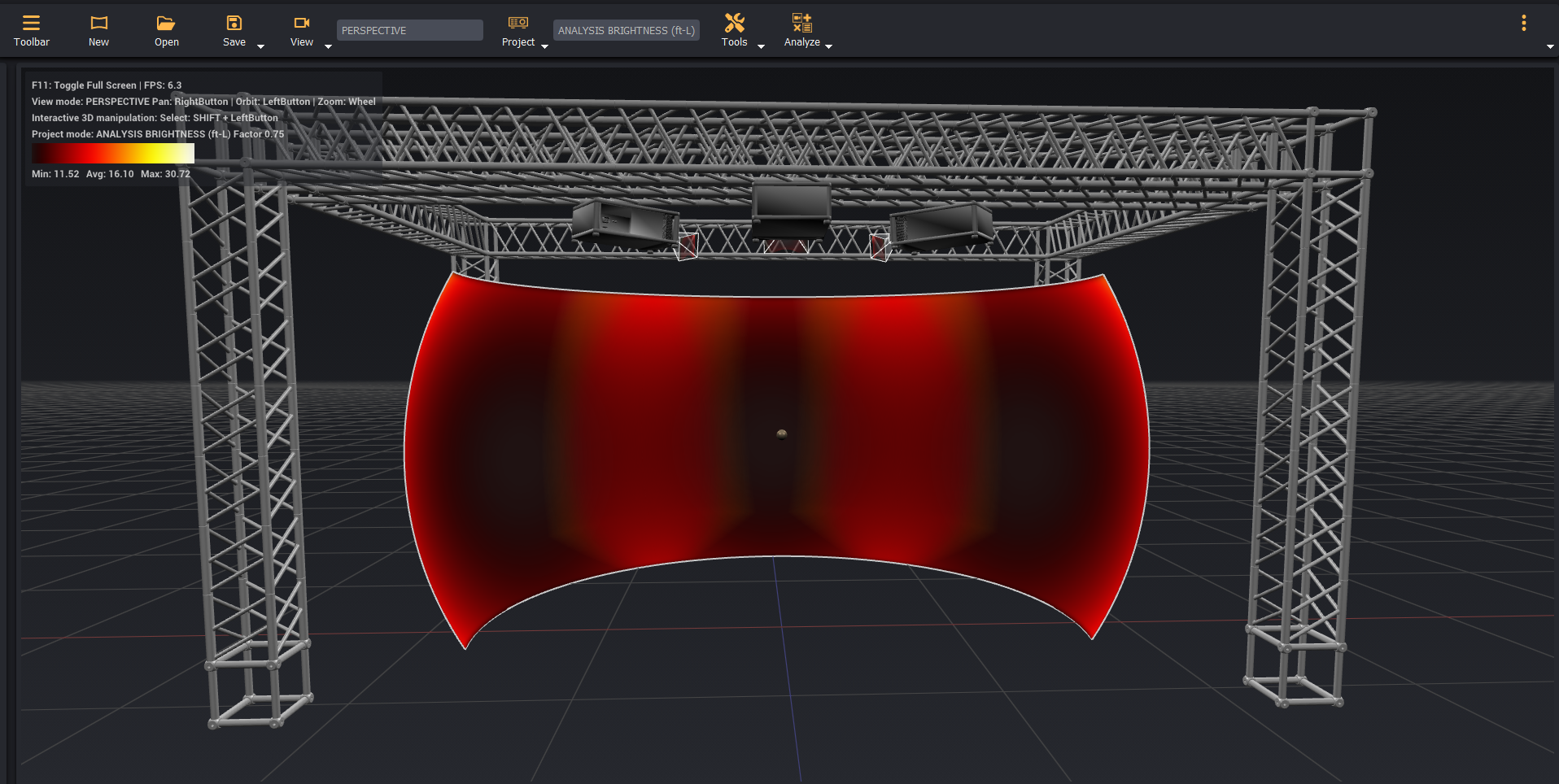

The Brightness analyze module calculates the brightness distribution, factoring in screen gain, ANSI lumens, and lamp degradation rate.

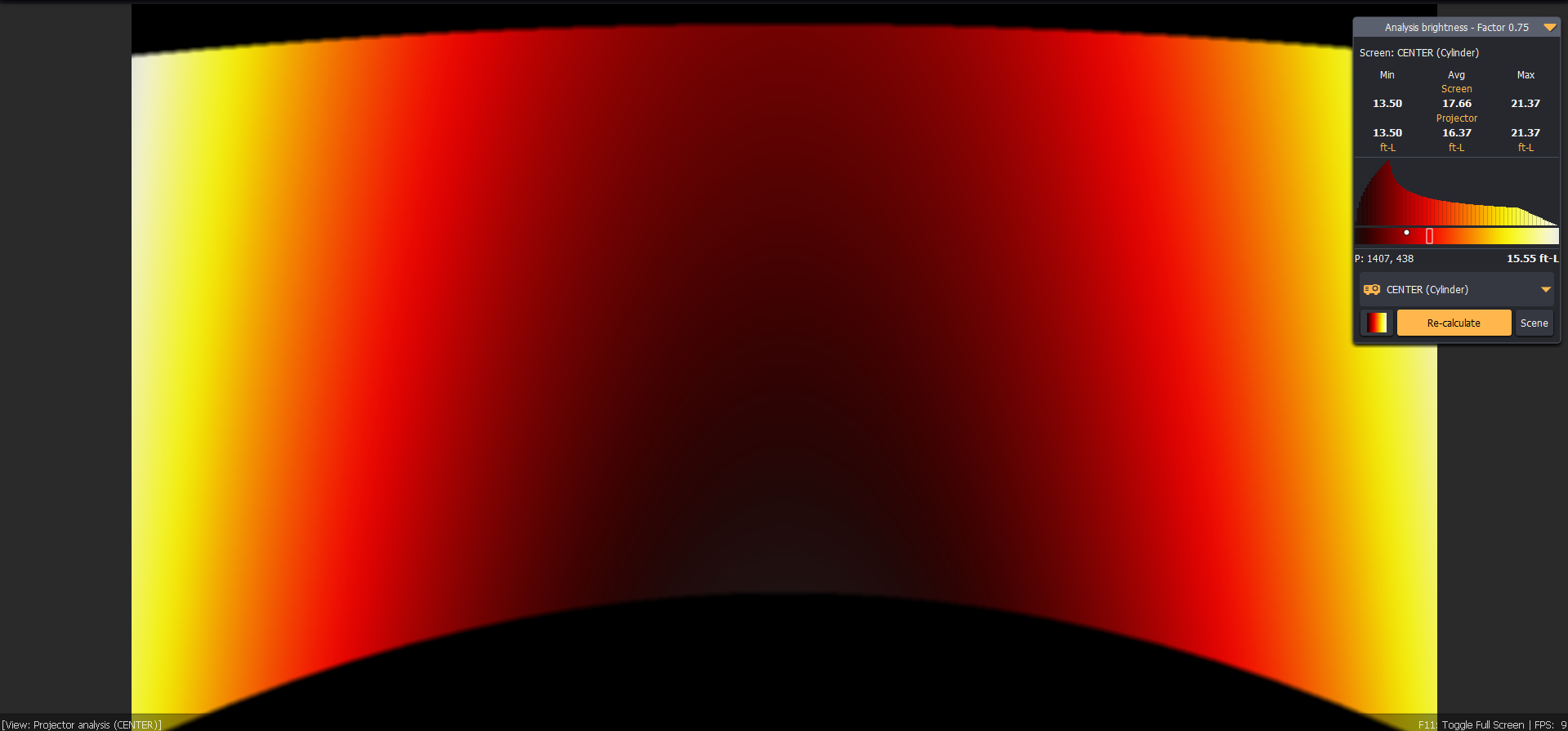

By hovering over a projector image, the user can see the analysis histogram and additional details about the analyzed values.

The brightness distribution is measured in footlamberts (ft-L) or candela per square meter (cd/m²). When projector images overlap, they are edge-blended, and the corresponding brightness values are blended as well.

An experimental brightness analysis feature is available to assess the brightness of overlapping projector images in regions that are not edge-blended.
