Aitoff Plot Analyze module

The Aitoff plot analyze module is a specialized visualization technique used in professional projection systems. It provides a 360-degree view of the projection setup and is accessible via the View menu for individual eyepoints.

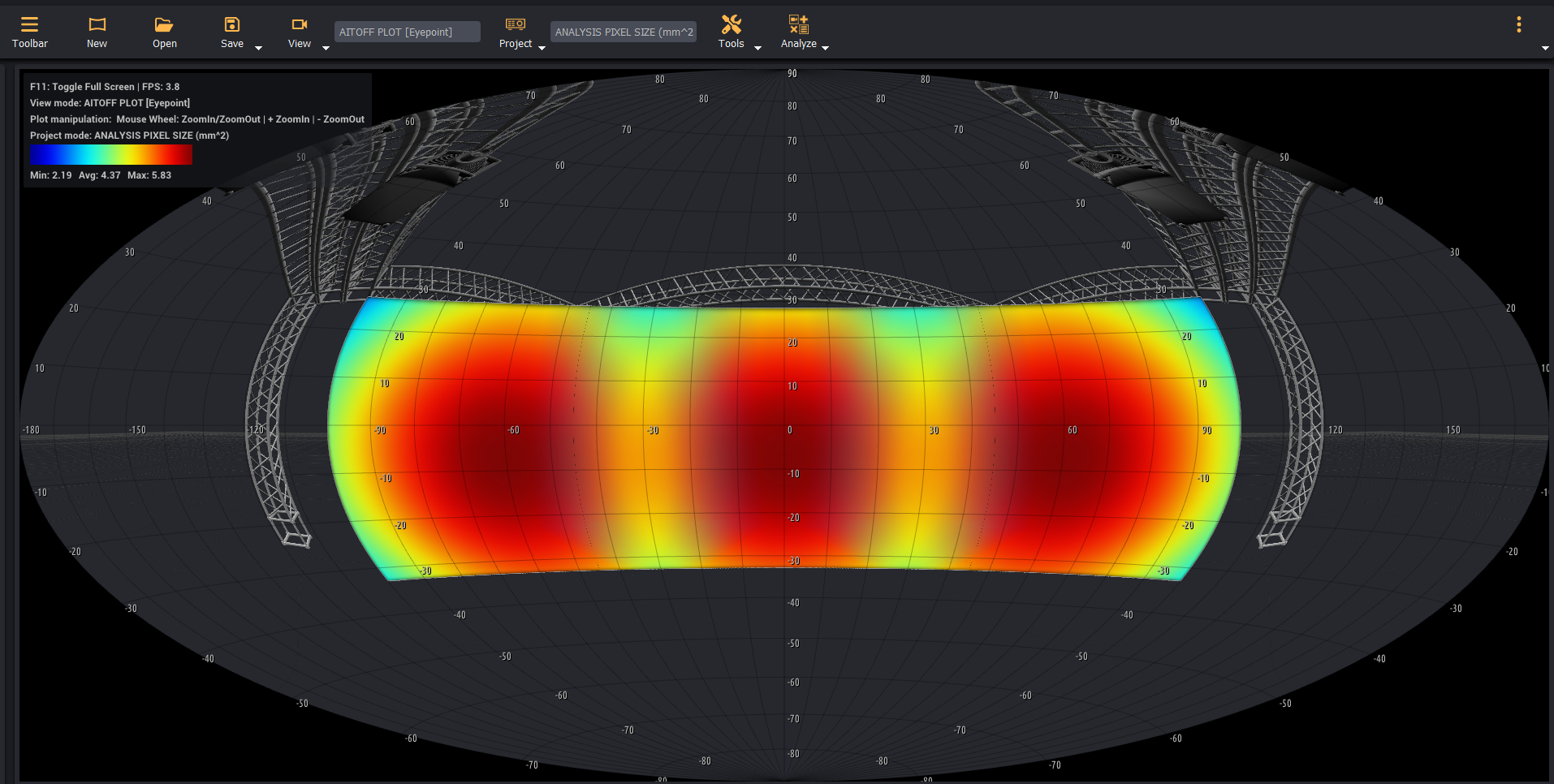

Once an analysis is completed, users can choose the Aitoff plot view for a specific eyepoint. Within this view, users can zoom in and out to fit the projection screen within the Aitoff plot display.
