Auto-alignment Mode

The first step in configuring the auto-alignment project is to select the screen shape and the auto-alignment mapping mode.

Two major mapping modes are available: Map on projector and Map on camera. For this auto alignment with cameras, the Map on camera will be used.

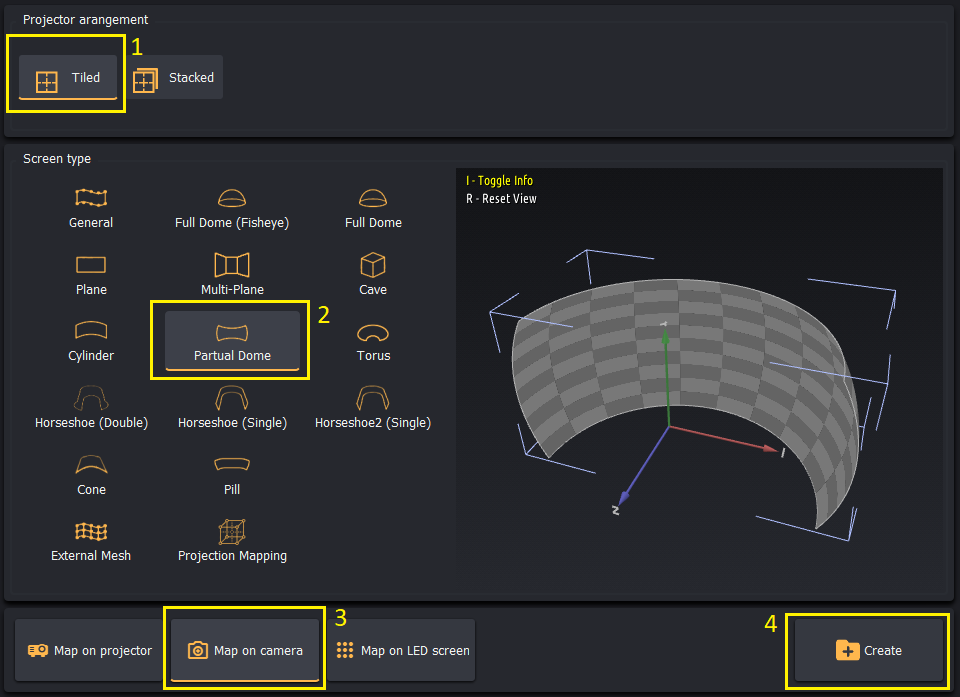

Alignment mode
  1. Select Tiled projectors (No projector stacking)
  2. Select Partial dome projection screen type
  3. Select Map on camera mapping mode
  4. Press the Create button

Mapping modes: Map on camera vs Map on projector

  • In Map on camera mode, the projection screen surface is mapped in the camera view before the projectors are scanned in the same camera view.
  • Auto-alignment can be performed without a camera, known as Map on projector mode.
    • In Map on projector mode, the projected image is mapped onto the projection surface by projecting a screen grid image and aligning it on the projection screen.

The only difference between Map on camera and Map on projector are the Views and Map&Scan steps. Whe the steps differ between Map on camera and Map on projector*, both steps will be explained.

The remaining auto-alignment steps are identical.
